PRO-COOL screw cleaning machine
| Overall size | 6000x900x 1500mm(L*W*H) |
| Cleaning pressure | 2000bar |
| Cleaning medium | Tap water |
| Cleaning efficiency | Average 30min/ screw |
| Screw diameter | Medium 30-medium 100mm |
| Screw length | Within 5 meters |

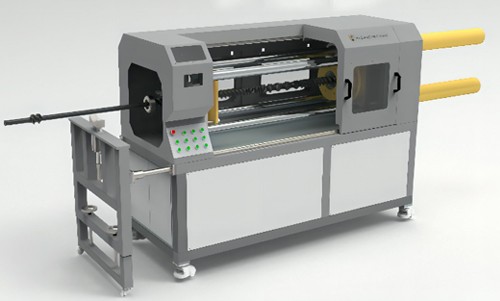

PRO-EASY screw removal machine
| Overall size | 39 50x 1000x 1800mm(L*W*H) |
| Machine weight | 2450Kg |
| Power supply | 380V/60HZ |
| Holding force of main chuck | 0-50 tons (adjustable) |
| Thrust cylinder pressure | 0-30 tons (adjustable) |
| Removable screw diameter | Medium 30-φ150mm |
| Detachable screw length | Within 5 meters |

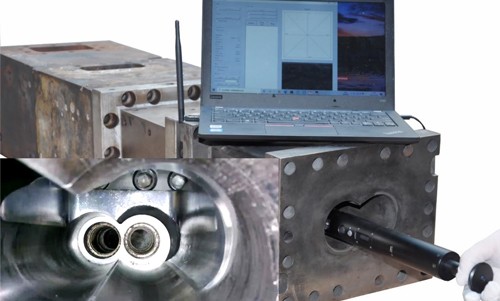

PROMAC barrel wear detector
| Inside diameter measuring range | φ40-φ450mm |
| Inside diameter measurement accuracy | +0.01mm |
| Axial measurement resolution | Every 3-5mm |
| Circumferential measurement accuracy | 360° |
| Measuring time | < 30 min |
| On-line measurement, compact system, simple operation | |

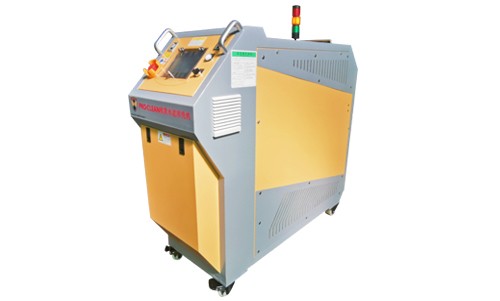

PRO-CLEAN tube waterway cleaning machine
| Overall size | 1600x500x 1200mm(L*W*H) | ||
| Water tank | 100L | Water pressure | 0.2-0.5MPa |
| Pipe connection | DN25/DN10 | Input/output | 4 in /4 out |
| Hydraulic control | Mitsubishi | Electrical part | Schneider |
| Easy to clean, non-destructive measurement, avoid channel blockage | |||

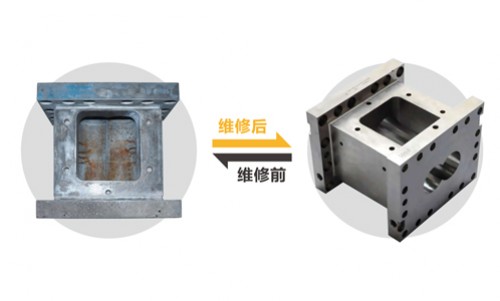

Extruder Transformation and Upgrade
| External measurement accuracy | 0.02mm |
| Detection time | <30min/per screw |
| Provide professional analysis reports | ·Wear degree, distribution and cause analysis of screw
·Wear trend prediction ·Parts replacement and process improvement |
PRO-SCAN screw wear detection service
| item | Improve the heat exchange efficiency and temperature control accuracy of the machine barrel, improve the process and product quality |
| apply | Color masterbatch industry |
| Improvement content | 12 machine barrels, 2 plugs, transition plate, heating rod (650W/price), water channel connector, wire box, and tee joint |
